EasyPro Eco-Series Waterfall Spillways

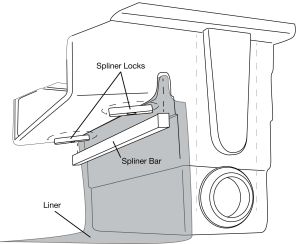

Eco-Series one piece waterfall spillways are ideal for creating waterfalls and pond features. Roto-molded for excellent strength. Inlet spinweld comes installed for easy plumbing- simply connect incoming supply line. Connecting the liner only takes seconds with the patented Spliner lock system. Gravel can be used to fill the inside of the spillway creating a natural looking waterfall.

CF12E - Spillway
12" Wide Waterfall Spillway
1-1/2" Inlet back of filter
16.5"L x 13"W x 9"H

CF18E - Spillway
18" Wide Waterfall Spillway
2" Inlet both ends
22"L x 14.5"W x 13.5"H

CF23E - Spillway
23 " Wide Waterfall Spillway
2" Inlet both ends
27-3/4"L x 14.5"W x 13.5"H

CF34E - Spillway
34 " Wide Waterfall Spillway
2" Inlet both ends
37.5 "L x 14.5"W x 13.5"H

CF48E - Spillway
48" Wide Waterfall Spillway
2" Inlet both ends
52.5"L x 14.5"W x 13.5"H

EasyPro Pro Series Straight Spillways

These Pro-Series waterfall spillways have a plastic grating just below the water level that not only keeps the walls from bowing when buried in the ground, but also allows you to stack 3"-4" of rock to hide the spillway. Straight spillways are 18" tall and come in a variety of widths. They com assembled and ready to be installed. The straight spillways are interchangeable and can be used in any combination with the curved spillways. Dual bulkheads allow incoming water from either or both ends. A plug is included for whichever is not used. Waterfall spillways are designed to sit inside the liner eliminating any concerns fo leaking. The liner simply goes under the spillway and up the back side. The bulkhead fitting secures the liner to the tub where the pipe attaches to the spillway.

EWS18 - Straight Spillway
18" wide spillway
2" bulkhead inlet

EWS34 - Straight Spillway
34 " wide spillway
2" bulkhead inlet

EWS50 - Straight Spillway
50 " wide spillway
3 " bulkhead inlet

EasyPro Curved Spillways

EasyPro Pro-Series curved spillways are the only expandable spillways on the market. Straight, inward or outward curving sections ou can custom design the shape of any water feature. Pieces are interchangeable with each other and with straight pieces listed above. Use in any combination. Everything bolts together for easy assembly. Don't forget to order the end pieces of these spillways.

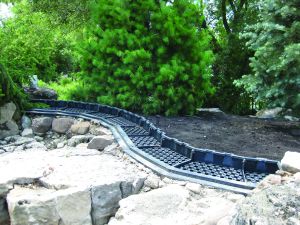

spillway installation

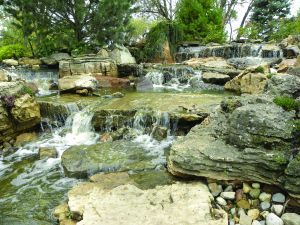

spillways finished

Inward Curving Spillways
EWI16 - Inward Curving Spillway
16"-24" Taper Spillway Width

Outward curving spillways
EWO16 - Outward Curving Spillway
24" - 16" Taper Spillway Width

Straight spillway
16" straight extension spillway

2" ends
Left & Right Ends for 2" pipe
18" total spillway width
2" bulkhead fitting

3" ends
Left & Right Ends for 3" pipe
18" total spillway width
3 " bulkhead fitting

EasyPro Waterfall Diffusers

EasyPro waterfall diffusers are ideal for use at the beginning of streams, in block walls, pool and other formal features. Extra strong vertical rib design creates a nearly industructible diffuser. 3-1/4" low profile makes them easy to conceal. Consistent 14" depth ensures all sizes will work together. Load bearing design allows blocks to be stacked directly on diffusers. Diffuser units have dual 2" inlets.

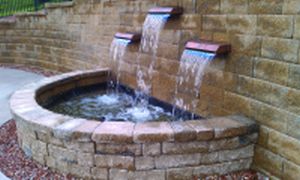

water feature
Waterfeature with diffuser and copper attachment

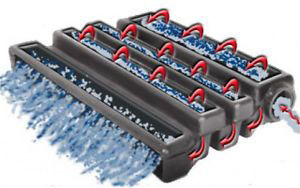

diffuser breakdown

16" Waterfall Diffuser
Recommended Flow 1000-4000 GPH

23 " Waterfall Diffuser
Recommended Flow 1500-6000 GPH

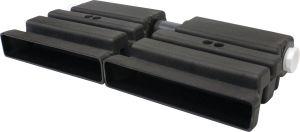

Dual 16" Waterfall Diffusers
Recommended Flow 2000-8000 GPH

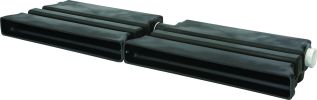

Dual 23 " Waterfall Diffusers
Recommended Flow 3000-12000 GPH

EasyPro Copper Spillway Attachments

Copper Spillway attachments create amazing formal features. made for the UWD16 and UWD23 spillways (sold seperately).

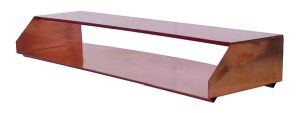

16" Wide Copper Attachment
16-1/8" x 7" x 3.5"
Wide opening

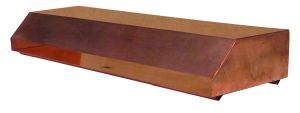

16" Narrow Copper Attachment
16-1/8" x 7" x 3.5"
Narrow opening

23 " Wide Copper Attachment
23-1/8" x 7" x 3.5"
Wide opening

23 " Narrow Copper Attachment
23-1/8" x 7" x 3.5"
Narrow opening
